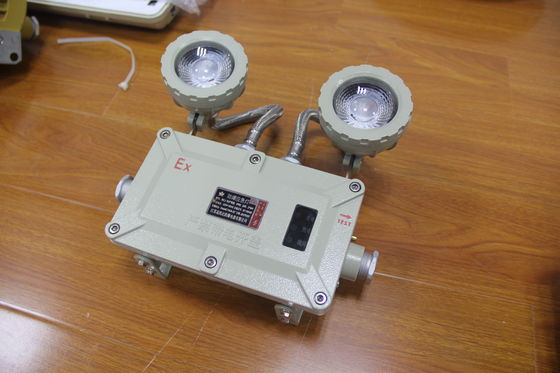

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

گواهی
چین crown extra lighting co. ltd گواهینامه ها
چین crown extra lighting co. ltd گواهینامه ها
چت IM آنلاین در حال حاضر

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light
Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

تصویر بزرگ :  Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

جزئیات محصول:
محل منبع: جیانگسو ، چین
نام تجاری: Crown Extra
گواهی: ATEX,CE,ROHS,CNEX,ISO9001
شماره مدل: قبل از میلاد
پرداخت:
مقدار حداقل تعداد سفارش: 1 پی سی
قیمت: USD51 per pc
جزئیات بسته بندی: کارتن 、 جعبه چوبی 、 پالت
زمان تحویل: 15 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: 50000 قطعه در ماه

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

شرح
مدل: قبل از میلاد قدرت: 2*3 وات
اندازه: 243*570*55mm زمان اضطراری:: 90 دقیقه/180 دقیقه
وزن: 2.7 کيلوگرم برنامه: منطقه 1 ، 2 و منطقه 21 ، 22
بازده نور: 100lm/w درجه IP: IP65
زمان شارژ: 24 ساعت سبک های نصب شده: دیوار
علامت گذاری: نمونه IIC T6
برجسته کردن:

220v wall mounted emergency light,explosion proof LED fire light,90 min emergency time flameproof light

,

explosion proof LED fire light

,

90 min emergency time flameproof light

Wall Mounted 220v Double Heads 90 min emergency time 20*3w Explosion Proof LED Emergency Fire Light



BCJ Series



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 0

Features:

1. Aluminium alloy for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Multi-mounting arrangements to suit any lighting layout
4. Saves in energy, maintenance and installation costs
5. Instant, bright illumination Instant, bright illumination




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 1





Electrical Data
Ex Marking Ex e IIC T6/ Ex tD A21 T80
Classification Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D
Application Zone 1, 2 & Zone 21, 22
IP Degree IP66
Light source LED 3W
Input Voltage 220VAC, 50/60 Hz/24VDC/24VAC/36VDC
Light efficiency 100-110lm/w
Work time >120 min
Charging time 24 hrs
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 2

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 3
