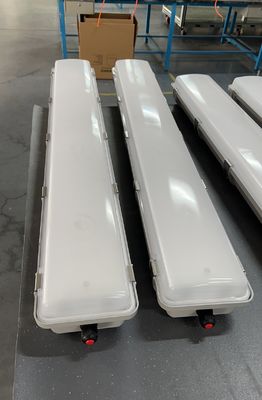

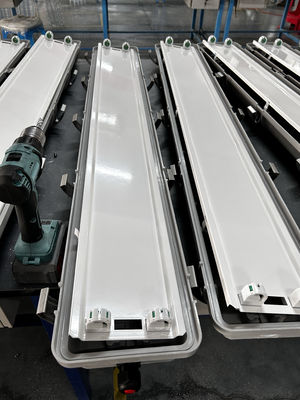

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty

گواهی
چین crown extra lighting co. ltd گواهینامه ها
چین crown extra lighting co. ltd گواهینامه ها
چت IM آنلاین در حال حاضر

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty
IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty

تصویر بزرگ :  IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty

جزئیات محصول:
محل منبع: جیانگسو ، چین
نام تجاری: Crown Extra
گواهی: ATEX,CE,ROHS,CNEX,ISO9001
شماره مدل: در یک طرف
پرداخت:
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: USD32-40 per pc
زمان تحویل: 15 روز کاری
شرایط پرداخت: t/t
قابلیت ارائه: 50000 قطعه در ماه

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty

شرح
مارک: تاج اضافی نام محصول: چراغ های خطی ضد انفجار BYS
محفظه: پلی استر تقویت شده با فیبر کای: RA: ≥70
کارایی: 100lm/w معتبر: CNEX ، EX ، IP66 ، IEC ، IECEX
CCT: ۵۵۰۰ تا ۶۵۰۰K، دمای رنگ های دیگر می تواند سفارشی شود زاویه پرتو: 120-140 درجه
نصب: سقف، دیوار، فلنج، آویز
برجسته کردن:

IP66 explosion proof fluorescent light,GRP material fluorescent light with warranty,high efficiency explosion proof light

,

GRP material fluorescent light with warranty

,

high efficiency explosion proof light

IP66 9-54w Explosion-proof fluorescent Light GRP material 100ml/w efficiency 5 Years Warranty





BYS Series



Features:

1.GRP enclosure, corrosion-proof, Polycarbonate lampshade, strip-shaped with anti-glare
2.Special locking mechanism, with reliable locking force
3.Built-in explosion proof interlockdevice, automatically power-off after cover open
4.The emergency device can be equipped




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Fiber-glass reinforced polyester
Exterior: Stainless steel
Globe: Polycarbonate, anti-glare
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001



IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty 0







Electrical Data
Ex Marking Ex d e IIC T6 Gb/ DIP A21 TA
Classification Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP Degree IP66
Corrosion Resistant WF2
Rated Voltage 110VAC; 220VAC/50~60HZ
Battery Back-up Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s
Conduit Entries G 3/4"
Terminal ≤2.5mm2
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion




Ordering Information
Model NO. BYS-600 BYS-1200
T8 Fluorescent tube (1-3)*18Watt (1350Lm,75Lm/W) (1-3)*36Watt (2700Lm,75Lm/W)
T5 Fluorescent tube (1-3)*14Watt(1350Lm,96Lm/W) (1-3)*28Watt (2100Lm,75Lm/W)
LED tube (1-3)*8Watt (800Lm,100Lm/W) (1-3)*18Watt (1800Lm,100Lm/W)



IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty 1



Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty 2

IP66 9-54w Explosion Proof Fluorescent Light GRP Material 100ml/w Efficiency 5 Years Warranty 3
