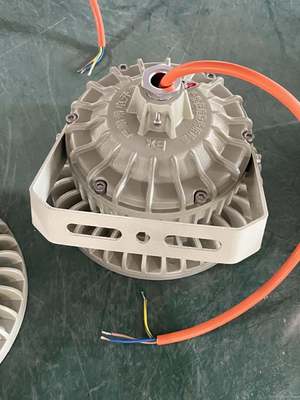

SMC Mold Pressure Shell Explosion Proof Led High Bay Lights 75w
Features:
Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wirings.
Application:
| Suitable for explosive gas environment Zone1, Zone2. |
| Suitable for Hazarous dust area: Zone21, Zone22. |
| Can be used in the environment of temperature group for T1~T6. |
| Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere. |
| Verious types terminals for options. |
Specification:
| Electrical data |
|
|
|
|
|
|
|
| Rated voltage |
100-240VAC, 50-60Hz |
| Power factor |
>0.95 |
| THD |
<20% |
| Luminous characteristics |
|
|
|
|
|
|
|
| Power consumption [W] |
20～70 |
80-100 |
100-150 |
|
| Colour rendering [CRI] |
70 (±2) |
| Colour temperature [K] |
5700-6500 |
| Luminaire efficiency [Lm/W] |
115-135 |
| Beam angle |
120° (60°, 90° is optional) |
| Mechanical data |
|
|
|
|
|
|
|
| Degree of protection |
IP66 |
| Cable entry |
G 3/4” |
| Weight [kg] |
4.8 |
6.4 |
8.8 |
/ |
| Terminal |
≤2.5 mm² |
| Mounting Styles |
Ceiling; Wall Bracket; Pendant: Flange; Flat |
Company introduction:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1-5 years warranty to our products.
